Page 60 - Jaquar Wellness Catalogue

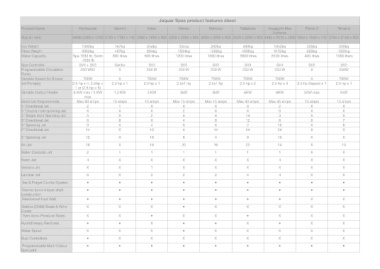

Jaquar Spas product features sheet
Product Name Hydrozone Gemini Neon Xenon Mercury Palladium Aquagym Max Fisher 2 Nirvana
Extreme
Size (in mm) 5900x 2300 x 1300 2100 x 1100 x 740 2060 x 1690 x 820 2300 x 2300 x 920 2000 x 2000 x 920 3520 x 2290 x 920 4490 x 2310 x 1300 1650 x 1650 x 740 2150 x 2150 x 920
Dry Weight 1382kg 167kg 254kg 334kg 292kg 490kg 1052kg 220kg 320kg
Filled Weight 9902kg 467kg 854kg 1534kg 1292kg 4090kg 9152kg 620kg 1320kg
Water Capacity Spa 1530 ltr, Swim 300 litres 600 litres 1200 litres 1000 litres 3600 litres 8100 litres 400 litres 1000 liters
7030 ltr
Spa Controller SV4 + SV2 Gecko SV2 SV2 SV2 SV3 SV4 SV2 SV2
Programmable Circulation 250 WX2 ʯ 250 W 250 W 250 W 250 W 250 W X 250W
Pump
Variable Speed Air Blower 700W ʯ 700W 700W 700W 700W 700W X 700W
Jet Pump(s) 2.5 hp x 4, 2.5hp × 2.5 hp x 1 2.5 hp x 1 2.5x1 hp 2.5x1 hp 2.5 hp x 2 2.5 hp x 4 2.5 hp 2speed x 1 2.5 hp x 1
1 or (2.5 hp × 5)
Variable Output Heater 6 KW max / 3 KW 1.3 KW 3 KW 3kW 3kW 6KW 6KW 3KW max 3KW
max
Electrical Requirements Max 60 amps 15 amps 15 amps Max 15 amps Max 15 amps Max 40 amps Max 45 amps 15 amps 15 amps
5" Directional Jet 2 1 ʯ X ʯ 6 2 X X
5" Double hold spinning Jet ʯ ʯ ʯ 2 ʯ ʯ 0 X X
5" Single Hold Spinning Jet 5 ʯ 2 4 4 14 3 X X
3" Directional Jet 6 8 ʯ 4 8 12 8 8 7
3" Spinning Jet 9 ʯ 4 ʯ X 2 10 X 8
2" Directional Jet 14 ʯ 10 4 14 24 24 8 X
2" Spinning Jet 12 ʯ 18 8 4 8 16 X X
Air Jet 16 ʯ 16 20 16 22 14 X 10
Water Cascade Jet 2 1 1 1 1 1 1 X X
Swim Jet 4 ʯ ʯ ʯ ʯ ʯ 4 X X

Volcano Jet ʯ ʯ 1 ʯ ʯ ʯ ʯ X X
Laminar Jet 6 ʯ 2 2 2 4 4 X X
Set & Forget Control System ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛
Thermo bond 4 layer shell ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛
construction
Reinforced Foot Wall ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ X X
Kiddies (Child) Seats & Wine ʯ ʯ ʯ ࡛ ʯ ʯ ʯ X X
Cooler
"Twin Accu-Pressure Seats ʯ ʯ ࡛ ʯ ʯ ࡛ ʯ X X
Hydrotherapy Recliners ࡛ ࡛ ʯ ࡛ ࡛ ʯ ࡛ X X
Water Spout ʯ ʯ ʯ ࡛ ʯ ʯ ʯ X X
Dual Controllers ࡛ ʯ ʯ ʯ ʯ ʯ ʯ X X
Programmable Multi-Colour ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛ ࡛
Spa Light
